Close-Coupled Box-Rim Toilet Suites Explained

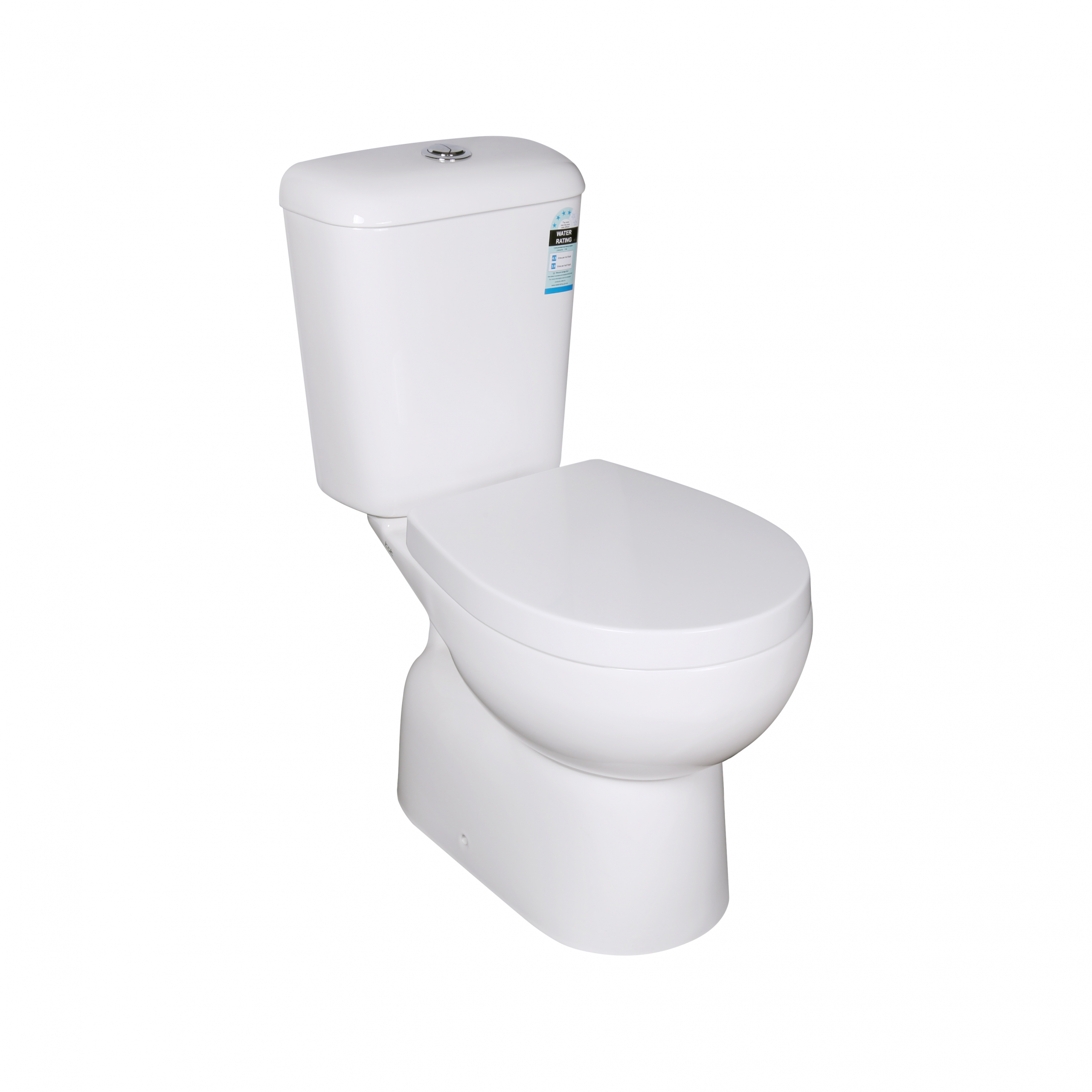

A close-coupled suite is the familiar arrangement where the cistern sits directly on top of the pan, joining the two into a single unit. A box-rim version squares off the pan and cistern for a crisp, contemporary look. This guide explains how these complete suites go together and why they remain the most popular choice for a straightforward bathroom.

One unit, simple to fit

In a close-coupled suite the cistern bolts straight onto the pan, so there’s no exposed connector pipe and no in-wall framing to plan. That makes it the easiest type to install and to service later — the cistern lid lifts off for direct access to the inlet valve and flush mechanism. For a like-for-like replacement or a new build on a budget, it’s hard to beat for value and simplicity.

The box-rim look

The box-rim shape gives the pan and cistern squared, angular edges rather than the soft curves of a traditional suite. It suits modern bathrooms with straight-line tapware and rectangular basins, reading as more architectural without moving to a wall-hung system. A skirted or fully enclosed base hides the trap and removes the awkward crevices that collect grime, so cleaning stays quick.

What to check before buying

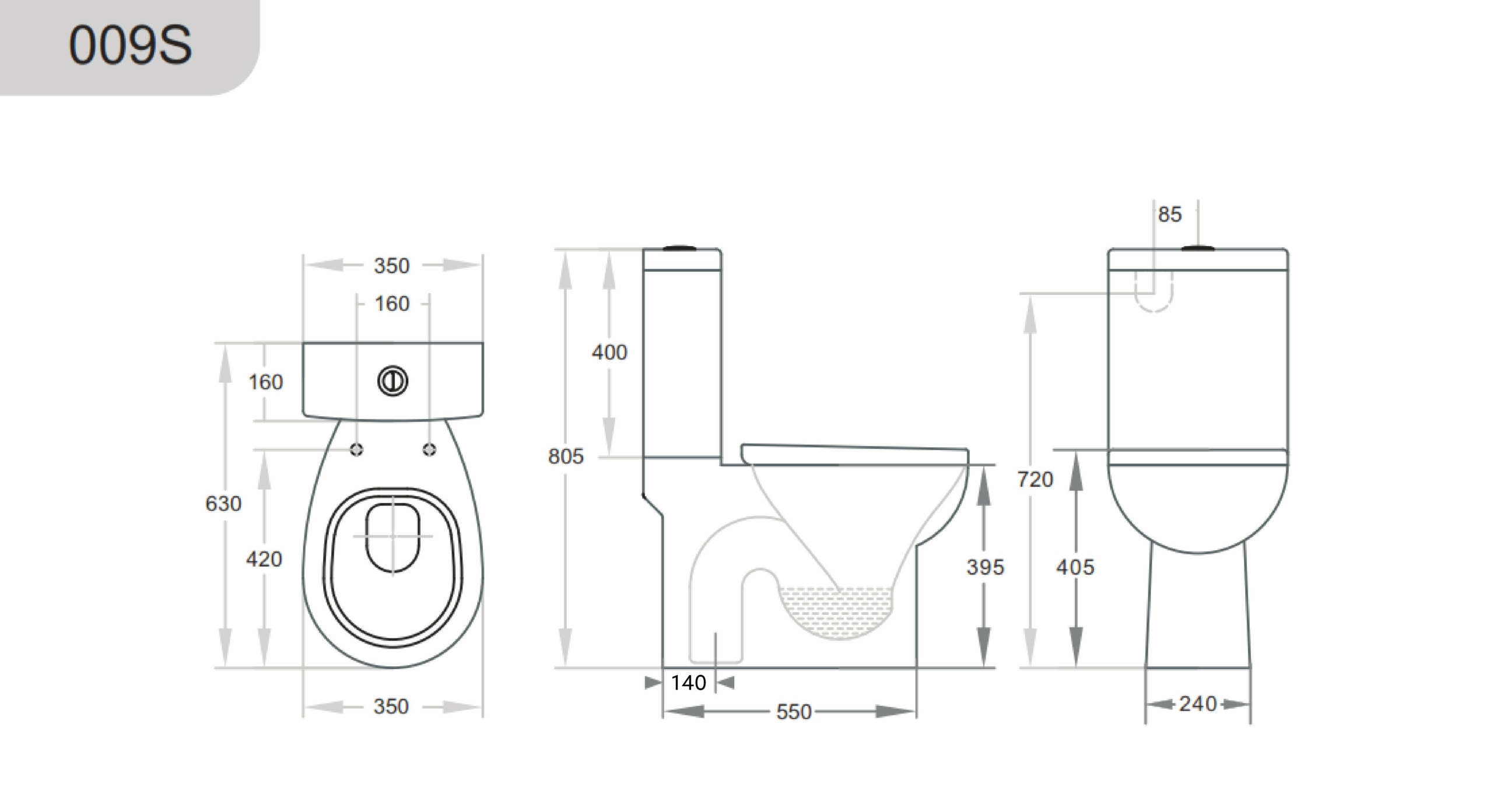

Confirm the set-out so the pan lines up with your existing waste, and check whether it’s an S-trap (floor waste) or P-trap (wall waste) fitting. Look for a dual-flush cistern with a solid water rating, a soft-close seat, and a smooth or rimless bowl for hygiene. Match the flush buttons to the rest of your fittings so the suite sits comfortably in the room.

See suites side by side

If you’re planning a bathroom in the Illawarra region, you can explore the range of toilet suites at Just Bathrooms, a local showroom, and compare close-coupled, back-to-wall and wall-hung designs in person.
